A101 video card Settings and Configuration
UNIDENTIFIED
A101
Category | Video |
Video Types Supported | CGA |
Video Processor | Unidentified |
Highest Resolution Supported | 720 x 350 (Monochrome) |
Data Bus Type | 8-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 64KB |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |

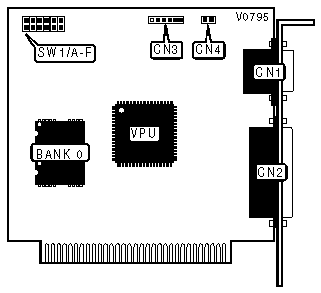

15-pin analog video port | CN1 | Light pen connector | CN3 |
25-pin parallel port | CN2 | Composite video connector | CN4 |
COLOR/MONOCHROME SELECT | ||
Setting | SW1/jumper A | |
» | Color | Open |
| Monochrome | Closed |
CGA EMULATION | ||
Setting | SW1/jumper B | |
» | Enabled | Closed |
| Disabled | Open |
AUTOSWITCH FUNCTION | ||
Setting | SW1/jumper C | |
» | Enabled | Closed |
Disabled | Open | |
PARALLEL PORT CONFIGURATION | |||
LPT/Address | SW1/jumper D | SW1/jumper E | |
» | LPT1/3BCh | Closed | Open |
| LPT2/378h | Open | Closed |
| LPT3/278h | Closed | Closed |
| Disabled | Open | Open |
COMPOSITE MONITOR TYPE | ||
Setting | SW1/jumper F | |
» | Color | Closed |
Monochrome | Open | |
