NITRO 3D video card Settings and Configuration
STB SYSTEMS, INC.
NITRO 3D
Card Type | Video card |
Video Chip Set | S3, Inc. |
Maximum Video Memory | 4MB EDO DRAM |
Video Types Supported | XVGA |
Highest Resolution Supported | 1024 x 768 |
Data Bus | 32-bit PCI |

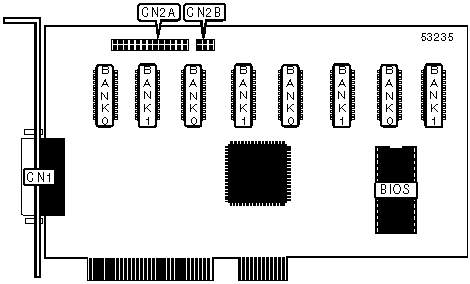

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port | CN1 | LPB extension to vesa connector | CN2B |
Vesa feature connector | CN2A | ||
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
2MB | (4) 512KB | None |
4MB | (4) 512KB | (4) 512KB |
