STB SYSTEMS, INC.
MVP-2X (NEW VERSION)
Card Type | Video card |
Video Chip Set | Tseng Labs ET4000 |
Highest Resolution Supported | 1280 x 1024 |
Maximum Video Memory | 2MB DRAM |
Data Bus | 16-bit ISA |
Video Types Supported | XVGA |

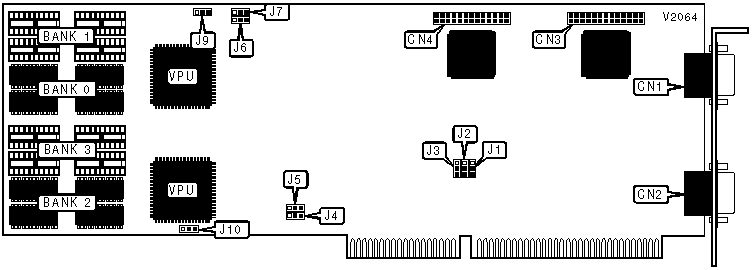

CONNECTIONS | |||
Function | Label | Function | Label |
VGA port 1 - 15-pin | CN1 | VGA feature connector for channel 1 | CN3 |
VGA port 2 - 15-pin | CN2 | VGA feature connector for channel 2 | CN4 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | Zero wait states enabled | J1 | Pins 2 & 3 closed |
Zero wait states disabled | J1 | Pins 1 & 2 closed | |
» | Video BIOS uses 16-bit data transfer | J2 | Pins 2 & 3 closed |
Video BIOS uses 8-bit data transfer | J2 | Pins 1 & 2 closed | |
» | Card uses 16-bit data transfer | J3 | Pins 1 & 2 closed |
Card uses 8-bit data transfer | J3 | Pins 2 & 3 closed | |
» | VPU runs at 50MHz | J4 | Pins 2 & 3 closed |
VPU runs at 40MHz | J4 | Pins 1 & 2 closed | |
» | Card will not function with monochrome card installed | J10 | Pins 2 & 3 closed |
Card will function with monochrome card installed | J10 | Pins 1 & 2 closed |
VERTICAL REFRESH RATE | |||
Resolution | Refresh Rate | J5 | |
» | 640 x 480 | 60Hz | Pins 2 & 3 closed |
» | 800 x 600 | 56Hz | Pins 2 & 3 closed |
» | 1024 x 768 | 43Hz (interlaced) | Pins 2 & 3 closed |
640 x 480 | 72Hz | Pins 1 & 2 closed | |
800 x 600 | 72Hz | Pins 1 & 2 closed | |
1024 x 768 | 60Hz | Pins 1 & 2 closed |
BASE I/O ADDRESS | ||||
Base Address | Board | J6 | J7 | J9 |
C3C3h | 1 | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed |
C3C3h | 2 | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 2 & 3 closed |
C3C3h | 3 | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 2 & 3 closed |
C3C3h | 4 | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 2 & 3 closed |
CBC3h | 5 | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 1 & 2 closed |
CBC3h | 6 | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 1 & 2 closed |
CBC3h | 7 | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 1 & 2 closed |
CBC3h | 8 | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed |
DRAM - CHANNEL 1 | ||
Size | Bank 0 | Bank 1 |
512KB | (4) 128KB | NONE |
1MB | (4) 128KB | (4) 128KB |
DRAM - CHANNEL 2 | ||
Size | Bank 2 | Bank 3 |
512KB | (4) 128KB | NONE |
1MB | (4) 128KB | (4) 128KB |
