HORIZON 64 PCI video card Settings and Configuration

STB SYSTEMS INC.

HORIZON 64 PCI

Card Type
Video card
Video Chip Set
Sierra Falcon 64
Highest Resolution Supported
1280 x 1024
Maximum Video Memory
2MB DRAM
Data Bus
32-bit PCI
Video Types Supported
XVGA

CONNECTIONS
Function
Label
Function
Label
15-pin analog video port
CN1
VESA feature connector
CN2

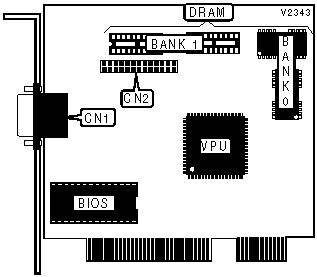

DRAM CONFIGURATION
Size
Bank 0
Bank 1
1MB
(2) 512 x 8
None
2MB
(2) 512 x 8
(2)512 x 8
