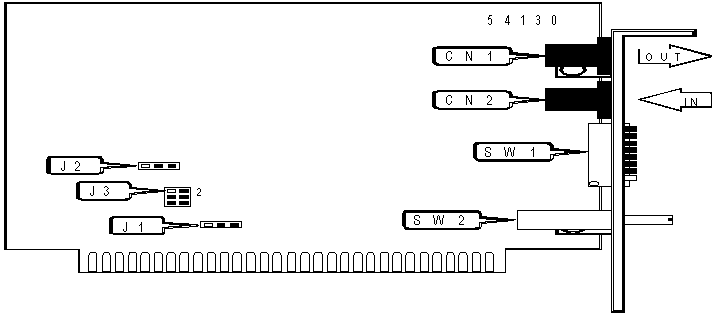

EGA MULTI RES video card Settings and Configuration

Card Type	Multi-I/O card
Chip Set	Unidentified
Maximum Onboard Memory	256KB
I/O Options	EGA video port, light pen, parallel port
Data Bus	8-bit ISA

CONNECTIONS
Function	Label	Function	Label
Battery connector	J1	Parallel port	P4
Light pen connector	J5	Clock generator socket	U5
9-pin digital video connector	P3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	EGA monitor connected to Multi Res adapter	J2	Pins 1 & 2 closed
	CGA/Monochrome monitor connected to Multi Res adapter	J2	Pins 2 & 3 closed
»	Factory configured - do not alter	J4	Pins 2 & 3 closed
Note: Jumper J4 configures the adapter for all display types. Alternate settings are unidentified.

DISPLAY CONFIGURATION
Display	Mode	SW1/1	SW1/2	SW1/3	SW1/4
Monochrome	Monochrome	Off	Off	On	Off
CGA	40x25	On	Off	Off	On
CGA	80x25	Off	Off	Off	On
EGA	8x8 text	On	On	On	Off
EGA	8x14 text	Off	On	On	Off
Note: These settings are for systems where the EGA Multi Res is the sole adapter in the system.

DISPLAY CONFIGURATION
Primary Display/Mode	Secondary Display/Mode	SW1/1	SW1/2	SW1/3	SW1/4
CGA/40x80	Monochrome/Monochrome	On	Off	Off	On
CGA/80x25	Monochrome/Monochrome	Off	Off	Off	On
EGA/8x8 text	Monochrome/Monochrome	On	On	On	Off
EGA/8x14 text	Monochrome/Monochrome	Off	On	On	Off
Note: These settings are for systems where the EGA Multi Res is the primary adapter in the system and a monochrome/printer card is the secondary adapter.

DISPLAY CONFIGURATION
Primary Display/Mode	Secondary Display/Mode	SW1/1	SW1/2	SW1/3	SW1/4
Monochrome/Monochrome	CGA/40x25	On	On	On	On
Monochrome/Monochrome	CGA/80x25	Off	On	On	On
Monochrome/Monochrome	EGA/8x8 text	On	Off	On	On
Monochrome/Monochrome	EGA/8x14 text	Off	Off	On	On
Note: These settings are for systems where the EGA Multi Res is the secondary adapter in the system and a monochrome/printer card is the primary adapter.

DISPLAY CONFIGURATION
Primary Display/Mode	Secondary Display/Mode	SW1/1	SW1/2	SW1/3	SW1/4
Monochrome/Monochrome	CGA/40x25	On	Off	On	Off
Monochrome/Monochrome	CGA/80x25	Off	Off	On	Off
Note: These settings are for systems where the EGA Multi Res is the primary adapter in the system and a CGA card is the secondary adapter.

DISPLAY CONFIGURATION
Primary Display/Mode	Secondary Display/Mode	SW1/1	SW1/2	SW1/3	SW1/4
CGA/40x25	Monochrome/Monochrome	On	On	Off	On
CGA/80x25	Monochrome/Monochrome	Off	On	Off	On
Note: These settings are for systems where the EGA Multi Res is the secondary adapter in the system and a CGA card is the primary adapter.

EGA MONITOR CONFIGURATION
Setting		SW1/7	SW1/8
»	Normal 25KHz monitors	Off	On
	Dyneer 140HI	Off	Off

PARALLEL PORT ADDRESS SELECTION
Setting	SW1/5	SW1/6
LPT1	On	On
LPT2	On	Off
LPT3	Off	On
Disabled	Off	Off
