WIZARD 924 video card Settings and Configuration
SIXGRAPH COMPUTING LTD.

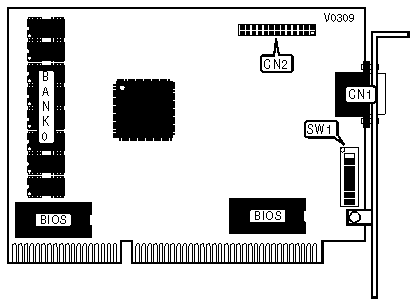

WIZARD 924
Category | Video |
Video Types Supported | XVGA |
Video Processor | S3 86C924 |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 16-bit ISA |
Memory Type | VRAM |
Maximum Onboard Memory | 1024KB |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video connector | CN1 | Feature connector | CN2 |
Note:Contact dealer when using feature connector as it is not VESA standard. | |||
VIDEO FREQUENCY SETTINGS | ||||||
Frequency | Mode | SW1/5 | SW1/6 | SW1/7 | SW1/8 | |
| » | 640 x 480 | Non-interlaced | On | On | On | On |
1280 x 1024 | Non-interlaced | Off | On | On | On | |
1280 x 1024 | Interlaced | On | Off | Off | Off | |
1024 x 768 | Non-interlaced | On | Off | Off | Off | |
1024 x 768 | Non-interlaced | On | Off | On | On | |
1024 x 768 | Interlaced | On | Off | On | Off | |
800 x 600 | Non-interlaced | On | Off | On | On | |
800 x 600 | Non-interlaced | On | On | Off | Off | |
800 x 600 | Non-interlaced | On | On | Off | On | |
640 x 480 | Non-interlaced | On | On | On | Off | |
TURBO MODE SELECT | ||
Turbo | SW1/2 | |
| » | Disabled | Off |
Enabled | On | |
VIDEO INTERRUPT SELECT | ||
IRQ9 | SW1/3 | |
| » | Enabled | On |
Disabled | Off | |
BUS WIDTH SELECTION | ||
Size | SW1/4 | |
| » | 8-bit | Off |
16-bit | On | |
FACTORY CONFIGURED SETTINGS | |
Switch | Setting |
SW1/1 | Off |
