SUPER VGA MASTER ISA video card Settings and Configuration






SIIG, INC.

SUPER VGA MASTER ISA

Category

Video

Video Types Supported

XVGA

Video Processor

Siig,Inc.

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1MB

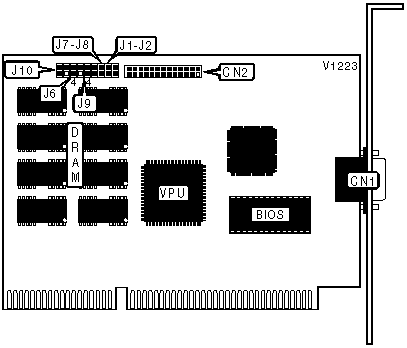

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

FIRST STAGE ZERO-WAIT STATE CONFIGURATION

Setting

J2

Enabled

Closed



Disabled

Open

SECOND STAGE ZERO-WAIT STATE CONFIGURATION

Setting

J1

Enabled

Open



Disabled

Closed

SCAN RATE CONFIGURATION

Rate

J7

< 48.7 KHz

Closed



48.7 KHz

Open

BIOS AUTODETECT CONFIGURATION

Setting

J8

Enabled

Closed



Disabled

Open

ISA BUS SLOT SELECTION

Bus

J6

J9

J10

16-bit

Open

Open

Closed



8-bit

Pins 1 & 2, 3 & 4 closed

Pins 1 & 2, 3 & 4 closed

Open
