AURORA 4000 PLUS video card Settings and Configuration
SIIG, INC.
AURORA 4000 PLUS
Card Type | Video card |
Video Chip Set | S3 Trio64V+ |
Maximum Video Memory | 4MB EDO DRAM |
I/O Options | VESA feature connector, Local Peripheral Bus |
Data Bus | 32-bit PCI |
Video Types Supported | XVGA |
Highest Resolution Supported | 1600 x 1200 |

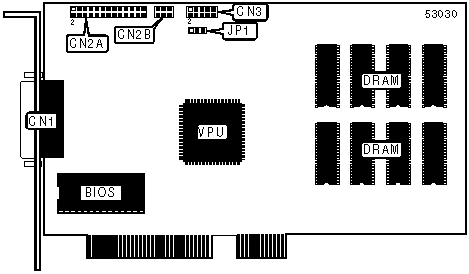

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port | CN1 | LPB extension to VESA connector | CN2B |
VESA feature connector | CN2A | MPEG daughterboard connector | CN3 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | IRQ2 disabled | JP1 | Pins 2 & 3 closed |
IRQ2 enabled- must use with MPEG daughterboard | JP1 | Pins 1 & 2 closed | |
