MCGP I video card Settings and Configuration
SIIG, INC.
MCGP I
Category | Video |
Video Types Supported | Monochrome/CGA |
Video Processor | Unidentified |
Highest Resolution Supported | 720 x 348 |
Data Bus Type | 8-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 64KB |

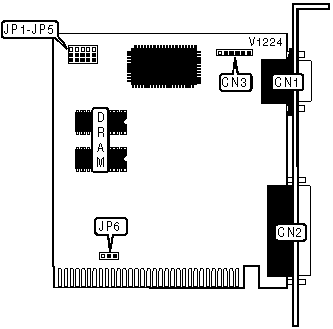

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | 6-pin light pen interface | CN3 |
25-pin parallel port connector | CN2 | ||
DISPLAY MODE CONFIGURATION | ||
Mode | JP1 | JP5 |
Monochrome | Pins 1 & 2 closed | Pins 1 & 2 closed |
CGA | Pins 2 & 3 closed | Pins 1 & 2 closed |
PARALLEL PORT CONFIGURATION | |||
Setting | I/O address | JP2 | JP3 |
Enabled | 3BCh | Pins 1 & 2 closed | Pins 1 & 2 closed |
Enabled | 378h | Pins 1 & 2 closed | Pins 2 & 3 closed |
Enabled | 278h | Pins 2 & 3 closed | Pins 1 & 2 closed |
Disabled | N/A | Pins 2 & 3 closed | Pins 2 & 3 closed |
PARALLEL PORT INTERRUPT SELECTION | |
IRQ | JP6 |
5 | Pins 1 & 2 closed |
7 | Pins 2 & 3 closed |
FONT GENERATOR SELECTION | |
Setting | JP4 |
Use built-in character font | Pins 1 & 2 closed |
Use an external character font (optional) | Pins 2 & 3 closed |
