CW31 video card Settings and Configuration
RELIALOGIC CORPORATION PRIVATE, LTD.
CW31
Category | Video |
Video Types Supported | XVGA |
Video Processor | Western Digital |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 1MB |

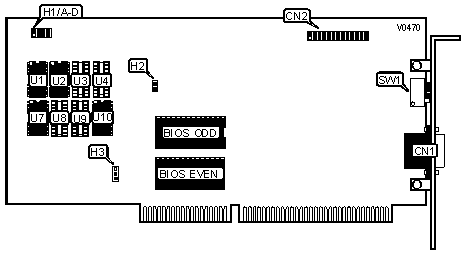

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | Feature connector | CN2 |
1024X768 VERTICAL RETRACE | ||
Setting | SW1/1 | SW1/2 |
Interlaced | Off | Off |
60Hz Non-interlaced | On | Off |
70Hz Non-interlaced | Off | On |
72Hz Non-interlaced | On | On |
800 X 600 VERTICAL RETRACE | ||
Setting | SW1/3 | SW1/4 |
56Hz | Off | Off |
60Hz | On | Off |
70Hz | Off | On |
72Hz | On | On |
HORIZONTAL SCAN RATE | ||
Setting | H1/A | |
| » | 31.5KHz | Open |
40KHz | Closed | |
8/16 BIT BIOS ACCESS | ||||
Setting | H1/C | H1/D | H3 | |
| » | 16-bit | Closed | Closed | Pins 2 & 3 closed |
8-bit | Open | Open | Pins 1 & 2 closed | |
ZERO WAIT STATE | ||
Setting | H2 | |
| » | Enabled | Closed |
Disabled | Open | |
VIDEO MEMORY CONFIGURATION | |||
Size | H1/B | U1, U2, U7, U10 | U3, U4, U8, U9 |
512KB | Closed | (4) 44256 | N/A |
1MB | Open | (4) 44256 | (4) 44256 |
