RTVGA 3106 video card Settings and Configuration
REALTEK
RTVGA 3106
Card Type | Video card |
Video Chip Set | Realtek |
Maximum Video Memory | 1MB DRAM |
Video Types Supported | VGA |
Highest Resolution Supported | 1280 x 1024 |
Data Bus | 16-bit ISA |

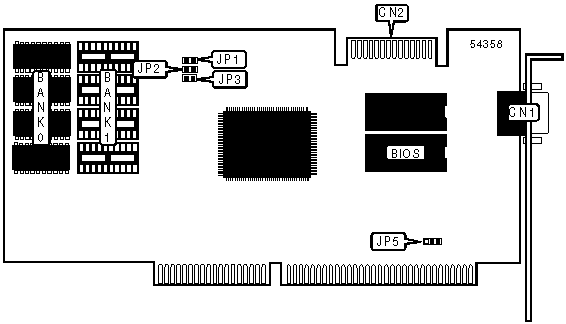

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port | CN1 | Feature connector | CN2 |
USER CONFIGURABLE SETTINGS | |||
Setting | Label | Position | |
Feature connector – connect to VCC | JP1 | Closed | |
Feature connector – floating | JP1 | Open | |
Address decoding – unlatched | JP2 | Open | |
Address decoding – latched | JP2 | Closed | |
| » | Interlaced mode – enabled | JP3 | Open |
Interlaced mode – disabled | JP3 | Closed | |
IRQ 9 enabled | JP5 | Pins 1 & 2 closed | |
IRQ 7 enabled | JP5 | Pins 2 & 3 closed | |
VIDEO MEMORY CONFIGURATION (DRAM) | ||
Size | Bank 0 | Bank 1 |
512KB | (4) 256KB | None |
1MB | (4) 256KB | (4) 256KB |
