ASTRO 400 video card Settings and Configuration






QUADRANT COMPONENTS, INC.

ASTRO 400

Card Type

Video card

Video Chip Set

Weitek P9130

Highest Resolution Supported

1600 x 1200

Maximum Video Memory

4MB VRAM

Data Bus

32-bit PCI

Video Types Supported

XVGA

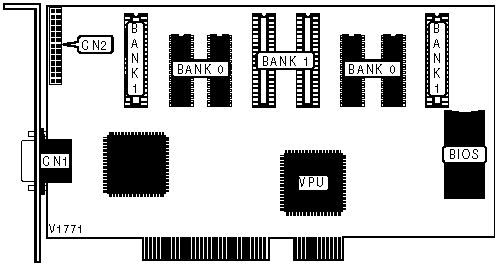

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Feature connector

CN2

VRAM CONFIGURATION

Size

Bank 0

Bank 1

2MB

(4) 256K x 16

None

4MB

(4) 256K x 16

(4) 256K x 16
