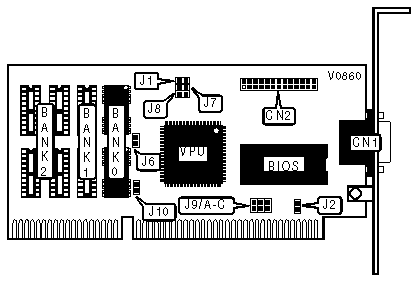

TVGA-8900D video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	Trident Microsystems, Inc.
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1MB

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA Feature connector	CN2

ZERO WAIT STATE
Setting		J1	J2
»	Enabled	Open	Closed
	Disabled	Closed	Open

SCAN RATE
Setting		J7
»	Interlaced mode	Closed
	Non-interlaced, 48.7KHz mode	Open

8/16-BIT BIOS AUTODETECT FUNCTION
Setting		J8
»	Disabled (8-bit rate selected)	Closed
	Enabled	Open

8/16-BIT BUS SLOT INSTALLATION
Setting		J6	J10	J9/jumper A	J9/jumper B	J9/jumper C
»	16-bit slot	Open	Closed	Open	Open	Open
	8-bit slot	Closed	Open	Closed	Closed	Closed

DRAM CONFIGURATION
Size		Bank 0	Bank 1	Bank 2
»	256KB	(2) 256K x 4	None	None
	512KB	(2) 256K x 4	(2) 256K x 4	None
	1MB	(2) 256K x 4	(2) 256K x 4	(4) 256K x 4
