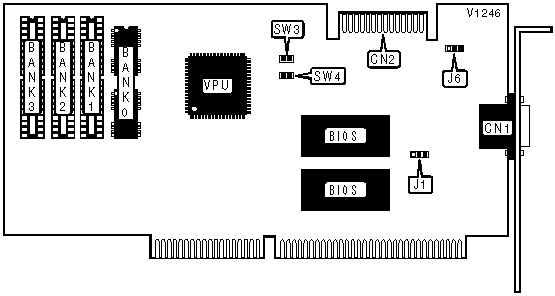

TVGA-8900C VER. 1 video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	Trident 8900C
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1MB

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

INTERRUPT CONFIGURATION
IRQ 2/9		J1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

MONITOR DETECTION CONFIGURATION
Setting		J6
»	Standard monitors	Pins 1 & 2 closed
	Non-standard monitors	Pins 2 & 3 closed

VGA SCAN RATE CONFIGURATION
Rate		SW3
»	<48.7KHz	Closed
	48.7KHz	Open

BIOS AUTODETECT CONFIGURATION
Setting	SW4
Disabled	Open
Enabled	Closed

DRAM CONFIGURATION
Memory	Bank 0	Bank 1	Bank 2	Bank 3
256KB	(2) 256K x 4	None	None	None
512KB	(2) 256K x 4	(2) 256K x 4	None	None
1MB	(2) 256K x 4	(2) 256K x 4	(2) 256K x 4	(2) 256K x 4
