CL54M30 PCI/SMT, CL5434 PCI/SMT, video card Settings and Configuration






QDI COMPUTER, INC.

CL54M30 PCI/SMT, CL5434 PCI/SMT,

CL5436 PCI/SMT, CL5440 PCI/SMT,

CL5446 PCI/SMT, CL54M30 PCI/SMT/2L, CL54M40 PCI/SMT, CL54M40 PCI/SMT/2L

Card Type

Video card

Video Chip Set

Cirrus Logic

Maximum Video Memory

2MB DRAM

Video Types Supported

VGA

Highest Resolution Supported

1280 x 1024

Data Bus

32-bit PCI

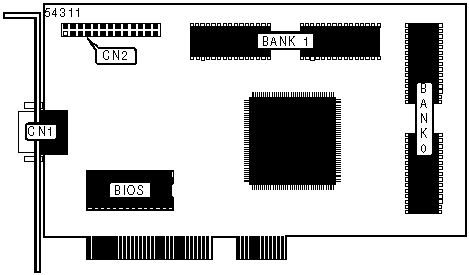

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Feature connector

CN2

VIDEO MEMORY CONFIGURATION (DRAM)

Size

Bank 0

Bank 1

1MB

(2) 256KB

None

2MB

(2) 512KB

(2) 512KB
