SOUNDPLUS-AZBX2 video card Settings and Configuration

Category	Video
Video Type	XVGA
Video Processor	Cirrus Logic
Highest Resolution Supported	1280 x 1024
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1MB

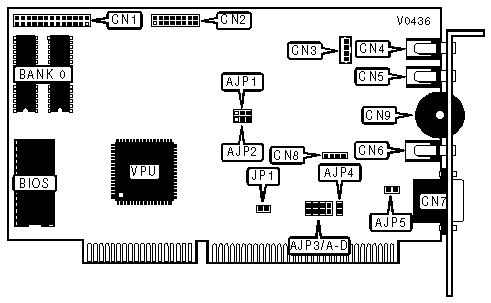

CONNECTIONS
Purpose	Location	Purpose	Location
VESA feature connector	CN1	Speaker jack	CN6
15-pin game/MIDI port	CN2	15-pin analog video port	CN7
CD-ROM connector	CN3	Speaker	CN8
Audio line-in jack	CN4	Volume control	CN9
Microphone jack	CN5

VGA MODE
Setting		JP1
»	Enabled	Closed
	Disabled	Open

GAME PORT MODE
Setting		AJP1
»	Enabled	Open
	Disabled	pins 1 & 2 closed

I/O BASE ADDRESS
ADDRESS		AJP2
»	220h	pins 2 & 3 closed
	240h	pins 1 & 2 closed

INTERRUPT SELECTION
IRQ		AJP3/A	AJP3/B	AJP3/C	AJP3/D
»	IRQ7	Open	Open	Open	Closed
	IRQ2	Closed	Open	Open	Open
	IRQ3	Open	Closed	Open	Open
	IRQ5	Open	Open	Closed	Open

ZERO WAIT STATE
Setting		AJP4
»	Enabled	Closed
	Disabled	Open

SOUND MODE
Setting		AJP5
»	Enabled	Closed
	Disabled	Open
