MVGA-T9440PCI (REV. B) video card Settings and Configuration
PROLINK COMPUTER, INC.
MVGA-T9440PCI (REV. B)
Category | Video |
Video Types Supported | XVGA |
Video Processor | Trident |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 32-bit PCI |
Memory Type | DRAM |
Maximum Onboard Memory | 2MB |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |

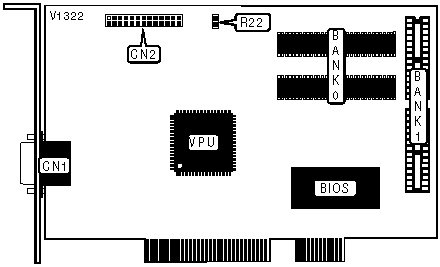

15-pin analog video port | CN1 | VGA feature connector | CN2 |
DRAM MEMORY CONFIGURATION | |
Setting | R22 |
(2) 256K x 16 installed | Closed |
(2) 256K x 16 not installed | Open |
DRAM CONFIGURATION | ||
Memory | Bank 0 | Bank 1 |
1MB | (4) 256K x 8 | None |
2MB | (4) 256K x 8 | (2) 256K x 16 |
