PV-BT848 (VER.1) video card Settings and Configuration
PROLINK COMPUTER, INC.

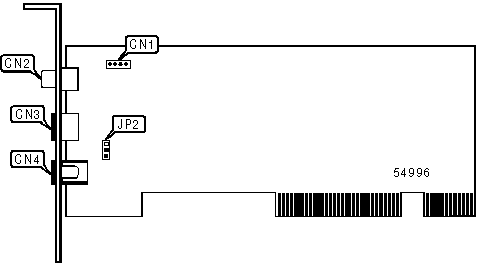

PV-BT848 (VER.1)
Card Type | Video capture card |
Video Chip Set | Unidentified |
Highest Resolution Supported | Unidentified |
Data Bus | 32-bit PCI |
CONNECTIONS | |||
Function | Label | Function | Label |
Microphone out | CN1 | Philips CCD video in | CN3 |
CVBS video in | CN2 | DC power | CN4 |
USER CONFIGURABLE SETTINGS | ||
Function | JP2 | |
| » | +5V DC power selection | Pins 1 & 2 closed |
| +12V DC power selection | Pins 2 & 3 closed | |
