ULTRA CLIPPER GRAPHICS UA1280 (6-SWITCH) video card Settings and Configuration
PIXELWORKS, INC.
ULTRA CLIPPER GRAPHICS UA1280 (6-SWITCH)
Category | Video |
Video Types Supported | XVGA |
Video Processor | Pixelworks, Inc.(exact location unidentified) |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 1.5MB |

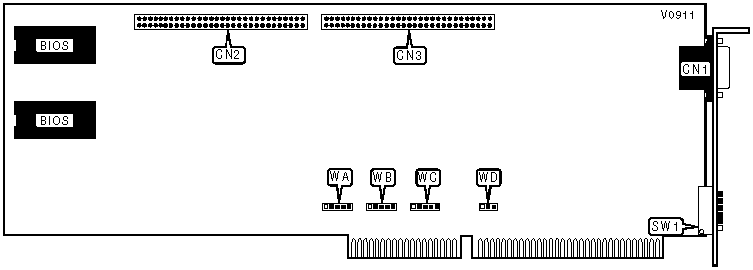

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | Daughterboard connector | CN2 & CN3 |
BASE I/O ADDRESS SELECTION | ||
| Address | WD | |
| » | 330h | Pins 1 & 2 closed |
| 340 | Pins 2 & 3 closed | |
DMA SELECTION | |||
| Channel | WA | WB | |
| » | 6 | Pins 1 & 2 closed | Pins 1 & 2 closed |
| 5 | Pins 4 & 5 closed | Pins 4 & 5 closed | |
| 7 | Pins 2 & 3 closed | Pins 2 & 3 closed | |
INTERRUPT SELECTION | ||
| IRQ | WC | |
| » | 10 | Pins 1 & 2 closed |
| 11 | Pins 2 & 3 closed | |
| 12 | Pins 4 & 5 closed | |
CGA EMULATION CONFIGURATION | |
Setting | SW1/1 |
Enabled | On |
Disabled | Off |
FACTORY CONFIGURED - DO NOT ALTER | |
Switch | Position |
SW1/2 | Off |
SW1/3 | Off |
SW1/4 | Off |
SW1/5 | On |
SW1/6 | Off |
