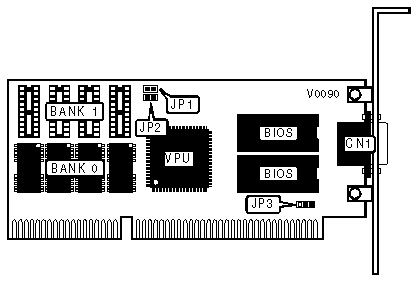

PT-507A video card Settings and Configuration
PINE TECHNOLOGY USA
PT-507A
Category | Video |
Video Types Supported | XVGA |
Video Processor | RTG 3160 |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 1024KB |
CONNECTIONS | |
Purpose | Location |
15-pin analog video port | CN1 |
VIDEO MODE SELECTION | ||
Mode | JP1 | |
| » | Interlaced | Open |
Non-Interlaced | Closed | |
ADDRESS DECODE CONFIGURATION | ||
Setting | JP2 | |
| » | Fast | Open |
Slow | Closed | |
VIDEO INTERRUPT SELECTION | ||
IRQ | JP3 | |
| » | 2/9 | Pins 1 & 2 closed |
7 | Pins 2 & 3 closed | |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
512KB | (4) 44256 | None |
1024KB | (4) 44256 | (4) 44256 |
