SMART TV video card Settings and Configuration

Video Chip Set	Unidentified
Maximum Video Memory	Unidentified
Video Types Supported	Unidentified
Highest Resolution Supported	Unidentified
Data Bus	External

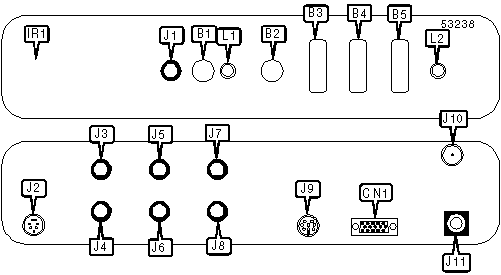

CONNECTIONS
Function	Label	Function	Label
PC/TV button	B1	Video output	J3
Video Source select button	B2	Video input	J4
Channel up/down button	B3	Audio output - right channel	J5
Volume up/down button	B4	Audio input - right channel	J6
Power button	B5	Audio output - left channel	J7
15-pin analog video port	CN1	Audio input - left channel	J8
External IR sensor connector	IR1	TV antenna/cable connector	J9
Headphone jack	J1	VGA cable connector	J10
S-video output	J2	DC 9V input	J11

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
L1	Unidentified	On	TV mode
L1	Unidentified	Off	TV mode off
L2	Red	On	Power on
L2	Green	On	Standby
L2	N/A	Off	Power off
