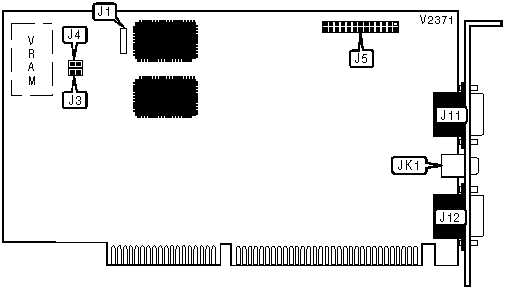

WATCH & GRAB MODEL 2100 video card Settings and Configuration

Card Type	Video capture board
Video Chip Set	SAA9051, 82C9001A
Highest Resolution Supported	800 x 600
Maximum Video Memory	VRAM (Amount unidentified)
Data Bus	16-bit ISA
Video Types Supported	XVGA
Capture Formats Supported	YUV 4: 1: 1

CONNECTIONS
Function	Label	Function	Label
IC bus connector	J1	Video in	J12
VGA feature connector	J5	Video source 1	JK1
Video out	J11
Note: The exact # of pins on J1 is unidentified.

VRAM CHIP CONFIGURATION
Type	J3	J4
TI TMS44C251	Closed	Closed
Other	Open	Open
