VGA PREMIUM PLUS video card Settings and Configuration

Category	Video
Video Types Supported	VGA
Video Processor	Chips and Technologies, Inc.
Highest Resolution Supported	800 x 600
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	256KB

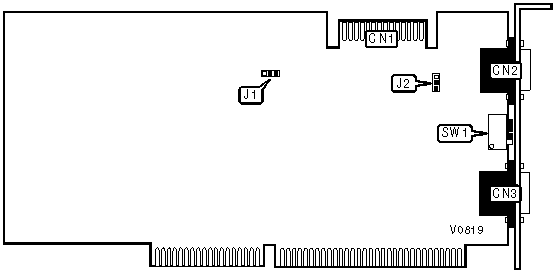

CONNECTIONS
Purpose	Location	Purpose	Location
VESA feature connector	CN1	15-pin analog video port	CN3
9-pin digital video port	CN2

CLOCK SOURCE
» Setting		J1
»	On-board clock	Pins 2 & 3 closed
»	Clock input from feature connector	Pins 1 & 2 closed

MONITOR SELECT (CN2)
» Setting		J2
»	EGA	Pins 1 & 2 closed
»	CGA or monochrome	Pins 2 & 3 closed

DISPLAY MODES (CN2)
Primary Adapter	Secondary Adapter	SW1/1	SW1/2	SW1/3	SW1/4
EGA/monochrome	CGA 80 x 25	Off	Off	On	Off
EGA/monochrome	CGA 40 x 25	On	Off	On	Off
EGA 640 x 350	Monochrome	Off	On	On	Off
EGA 640 x 200	Monochrome	On	On	On	Off
EGA/CGA 80 x 25	Monochrome	Off	Off	Off	On
EGA/CGA 40 x 25	Monochrome	On	Off	Off	On
CGA 80 x 25	EGA/monochrome	Off	On	Off	On
CGA 40 x 25	EGA/monochrome	On	On	Off	On
Monochrome	EGA 640 x 350	Off	Off	On	On
Monochrome	EGA 640 x 200	On	Off	On	On
Monochrome	EGA/CGA 80 x 25	Off	On	On	On
Monochrome	EGA/CGA 40 x 25	On	On	On	On
