ELITEGROUP COMPUTER SYSTEMS, INC.

3D VISION-PAGP

Card Type

Video card

Video Chip Set

3D Labs

Maximum Video Memory

8MB

Video Types Supported

VGA

Highest Resolution Supported

1600 x 1200

Data Bus

32-bit AGP

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

Feature connector

CN2

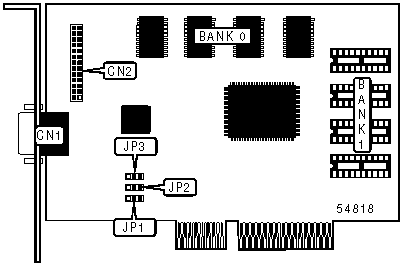

USER CONFIGURABLE SETTINGS

Function

Label

Position

Set Base Class to 0

JP1

Pins 1 & 2 closed

Set Base Class to 3

JP1

Pins 2 & 3 closed

VGA mode enabled

JP2

Pins 1 & 2 closed

VGA mode disabled

JP2

Pins 2 & 3 closed

VGA fixed addressing enabled

JP3

Pins 1 & 2 closed

VGA fixed addressing disabled

JP3

Pins 2 & 3 closed

VIDEO MEMORY CONFIGURATION (DRAM)

Size

Bank 0

Bank 1

4MB

(4) 256KB x 32

None

8MB

(4) 256KB x 32

(4) 256KB x 32








TOP
