PTI-9440 video card Settings and Configuration

Card Type	Video card
Video Chip Set	Trident
Highest Resolution Supported	1280 x 1024
Maximum Video Memory	Unidentified
Data Bus	32-bit PCI
Video Types Supported	XVGA

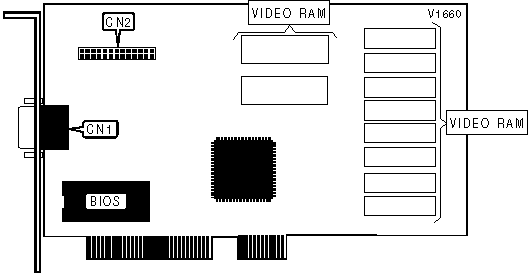

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2
