WG-2010P (REV. A+) video card Settings and Configuration
DIAMOND FLOWER, INC.
WG-2010P (REV. A+)
Card Type | Video card |
Video Chip Set | ALG |
Maximum Video Memory | 1MB DRAM |
Video Types Supported | VGA |
Highest Resolution Supported | 1024 x 768 |
Data Bus | 32-bit PCI |

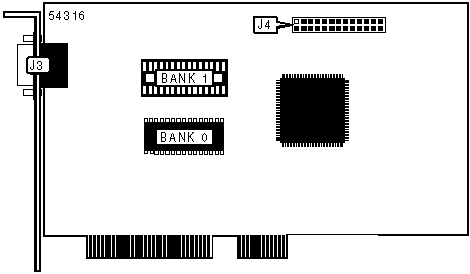

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port | J3 | Feature connector | J4 |
VIDEO MEMORY CONFIGURATION (DRAM) | ||
Size | Bank 0 | Bank 1 |
512KB | (1) 256KB x 16 | None |
1MB | (1) 256KB x 16 | (1) 256KB x 16 |
