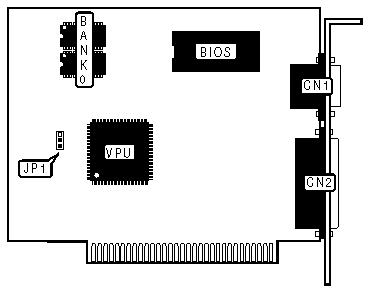

MG-160 video card Settings and Configuration
DIAMOND FLOWER, INC.
MG-160
Category | Video |
Video Types Supported | Monochrome |
Video Processor | Diamond Flower, Inc. |
Highest Resolution Supported | 720 x 348 |
Data Bus Type | 8-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 64KB |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
9-pin digital video port | CN1 | 25-pin parallel port | CN2 |
PARALLEL PORT | ||
» Setting | JP1 | |
| » | Disabled | Pins 2 & 3 closed |
| » | Enabled | Pins 1 & 2 closed |
