VG-6000 video card Settings and Configuration

Category	Video
Video Type	Monochrome, CGA, EGA, VGA
Video Processor	Cirrus Logic
Highest Resolution Supported	800 x 600
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	256KB

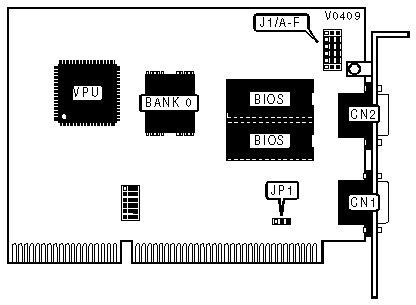

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	9-pin digital video port	CN2

MONITOR SELECTION
Setting		J1/A	J1/B
»	Analog multi-frequency	Pins 2 & 3 closed	Pins 2 & 3 closed
	Monochrome	Pins 1 & 2 closed	Pins 1 & 2 closed
	Color	Pins 2& 3 closed	Pins 1 & 2 closed
	Enhanced color	Pins 1 & 2 closed	Pins 2 & 3 closed

ADAPTER SELECTION
Setting		J1/C
»	Primary	Pins 1 & 2 closed
	Secondary	Pins 2 & 3 closed

DISPLAY MODE
Setting		J1/D	J1/E	J1/F
»	VGA	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
	MDA	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	EGA	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	CGA	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed

CRT INTERRUPT
Setting		JP1
»	Enabled	Pins 2 & 3 closed
	Disabled	Pins 1 & 2 closed
