VG-8000W/WH video card Settings and Configuration

Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	1024 x 768
Maximum Video Memory	1MB DRAM
Data Bus	16-bit ISA
Video Types Supported	XVGA

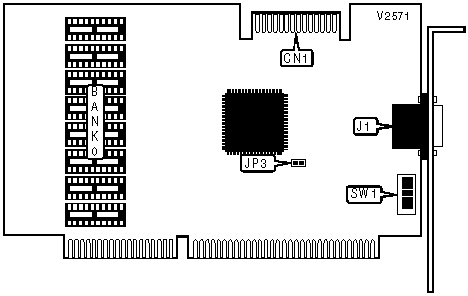

CONNECTIONS
Function	Label	Function	Label
Feature connector	CN1	15-pin analog video port	J1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	0-Wait state disabled	JP3	Open
	O-Wait state enabled	JP3	Closed
»	31.5Khz horizontal scan rate 60Hz, 70Hz vertical scan rate	SW1/5	Off
	40Khz horizontal scan rate 75Hz, 88Hz vertical scan rate	SW1/5	On

DRAM CONFIGURATION
Size	Bank 0
1MB	(8) 256K x 4

MONITOR VERTICAL REFRESH RATE SELECTION (800 X 600 MODE SETTING)
Setting		SW1/1	SW1/2
»	56Hz	Off	Off
	56Hz	On	On
	60Hz	Off	On
	72Hz	On	Off

MONITOR VERTICAL REFRESH RATE SELECTION (1024 X 768 MODE SETTING)
Setting		SW1/3	SW1/4
»	87Hz Interlaced	Off	Off
	60Hz Non-Interlaced	Off	On
	70Hz Non-interlaced	On	Off
	72Hz Non-interlaced	On	On
