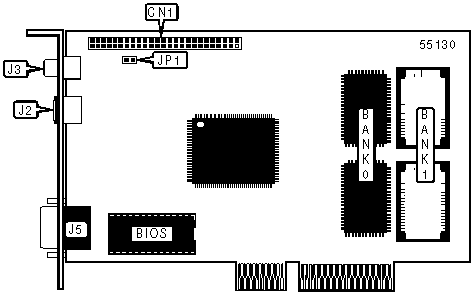

DSV5357 video card Settings and Configuration






DATAEXPERT CORPORATION

DSV5357

Card Type

Video card

Video Chip Set

S3

Maximum Video Memory

4MB SGRAM

Video Types Supported

VGA

Highest Resolution Supported

1280 x 1024

Data Bus

AGP

CONNECTIONS

Function

Label

Function

Label

Feature connector (VGA)

CN1

A/V out

J3

S-Video out

J2

15-pin analog video port

J5

USER CONFIGURABLE SETTINGS

Function

Label

Position

INT A enabled

JP1

Closed

INT A disabled

JP1

Open

VIDEO MEMORY CONFIGURATION (SGRAM)

Size

Bank 0

Bank 1

2MB

(2) 256KB x 32

None

4MB

(2) 256KB x 32

(2) 256KB x 32








TOP
