DIT5740 (SGRAM) video card Settings and Configuration

Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	8MB SGRAM
Video Types Supported	VGA
Highest Resolution Supported	Unidentified
Data Bus	AGP

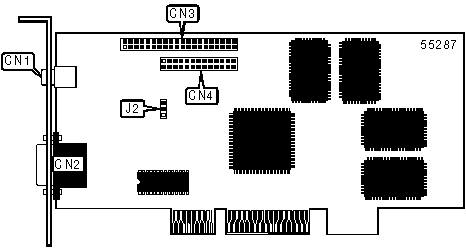

CONNECTIONS
Function	Label	Function	Label
TV out connector	CN1	VMI connector	CN3
15-pin analog video port	CN2	Feature connector (VGA)	CN4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	PAL	J2	Pins 1 & 2 closed
	NTSC	J2	Pins 2 & 3 closed

SGRAM CONFIGURATION
Size	Bank 0
4MB	(4) 256KB x 32
8MB	(4) 512KB x 32
