ARK2000PV (VER.1.0) video card Settings and Configuration
CARDEXPERT TECHNOLOGY, INC.
ARK2000PV (VER.1.0)
Card Type | Video card |
Video Chip Set | ARK2000PV VGA chip |
Highest Resolution Supported | 1600 x 1200 |
Maximum Video Memory | 2MB RAM (type unidentified) |
Data Bus | PCI |
Video Types Supported | XVGA |

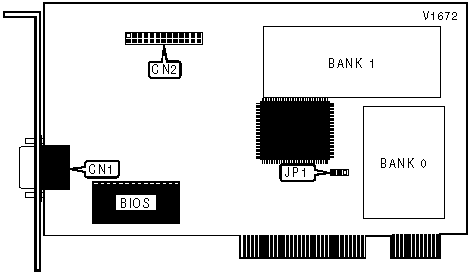

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port | CN1 | Feature connector | CN2 |
USER CONFIGURABLE SETTINGS | ||
Function | Label | Position |
PCI latency timer disabled | JP1 | Pins 1 & 2 closed |
PCI latency timer enabled | JP1 | Pins 2 & 3 closed |
RAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1MB | Installed | None |
2MB | Installed | Installed |
Note:The exact memory configuration is unidentified. | ||
