TRIDENT 3DIMAGE 975X (AGP) video card Settings and Configuration






CARDEXPERT TECHNOLOGY, INC.

TRIDENT 3DIMAGE 975X (AGP)

Card Type

Video card

Video Chip Set

Trident

Maximum Video Memory

4MB SGRAM

Video Types Supported

VGA

Highest Resolution Supported

1600 x 1200

Data Bus

AGP

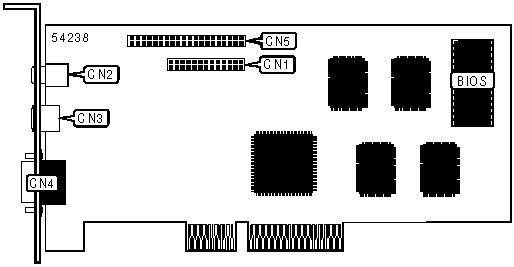

CONNECTIONS

Function

Label

Function

Label

Feature connector

CN1

15-pin analog video port

CN4

TV out via RCA jack

CN2

VMI connector

CN5

S-video out

CN3
