AVER MOVIEMATE video card Settings and Configuration

Category	Video/Audio card
Video Types Supported	XVGA
Video Processor	Unidentified
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	N/A
Maximum Onboard Memory	N/A

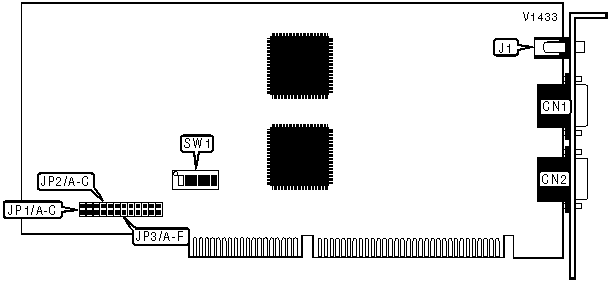

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port - in	CN1	Line out	J1
15-pin analog video port - out	CN2

DMA CHANNEL SELECTION
DMA		JP1/A	JP1/B	JP1/C	JP2/A	JP2/B	JP2/C
»	Disabled	Open	Open	Open	Open	Open	Open
	5	Open	Open	Closed	Open	Open	Closed
	6	Open	Closed	Open	Open	Closed	Open
	7	Closed	Open	Open	Closed	Open	Open

INTERRUPT SELECTION
IRQ		JP3/A	JP3/B	JP3/C	JP3/D	JP3/E	JP3/F
»	15	Open	Open	Open	Open	Open	Closed
	5	Open	Closed	Open	Open	Open	Open
	7	Closed	Open	Open	Open	Open	Open
	10	Open	Open	Closed	Open	Open	Open
	11	Open	Open	Open	Closed	Open	Open
	12	Open	Open	Open	Open	Closed	Open

BASE I/O ADDRESS SELECTION
Address		SW1/3	SW1/4	SW1/5	SW1/6
»	210h	On	On	On	Off
	200h	On	On	On	On
	220h	On	On	Off	On
	230h	On	On	Off	Off
	240h	On	Off	On	On
	250h	On	Off	On	Off
	260h	On	Off	Off	On
	270h	On	Off	Off	Off
	280h	Off	On	On	On
	290h	Off	On	On	Off
	2A0h	Off	On	Off	On
	2B0h	Off	On	Off	Off
	2C0h	Off	Off	On	On
	2D0h	Off	Off	On	Off
	2E0h	Off	Off	Off	On
	2F0h	Off	Off	Off	Off

FACTORY CONFIGURED - DO NOT ALTER
Switch	Position
SW1/1	Off
SW1/2	On
