PCI-AV264GT/PLUS video card Settings and Configuration
ASUS COMPUTER INTERNATIONAL
PCI-AV264GT/PLUS
Card Type | Video/Audio card |
Video Chip Set | ATI Technologies, Inc. |
Audio Chip Set | Creative Labs |
Maximum Video Memory | 4MB SGRAM (2MB on upgrade board) |
Video Types Supported | XVGA |
Highest Resolution Supported | 1600x1200 |
I/O Options | Game port, VGA port, microphone in, wavetable connector, PC speaker in/out, Audio in - CD-ROM (3), line in, line out, volume control |
Data Bus | Media Bus |

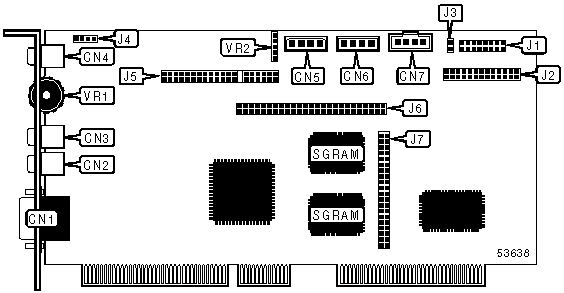

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port | CN1 | Wavetable connector | J2 |
Line in | CN2 | PC speaker in | J3 |
Microphone in | CN3 | PC speaker out | J4 |
Speaker out | CN4 | Proprietary connector (AMC) | J5 |
Audio in - CD-ROM (Sony) | CN5 | Header connector to Upgrade board | J6 |
Audio in - CD-ROM (Panasonic) | CN6 | Header connector to Upgrade board | J7 |
Audio in - CD-ROM (Mitsumi) | CN7 | Volume control | VR1 |
Game port | J1 | Digital volume control | VR2 |
VIDEO MEMORY CONFIGURATION (SGRAM) | ||
Size | Mainboard | Upgrade board |
2MB | (2) 4 x 512KB | None |
4MB | (2) 4 x 512KB | (2) 4 x 512KB |
2MB Upgrade Board
CONNECTIONS | |||
Function | Label | Function | Label |
Header connector to mainboard | J1 | Header connector to mainboard | J2 |
