PCI-V264VT video card Settings and Configuration

Card Type	Video card
Video Chip Set	ATI Technologies, Inc.
Maximum Video Memory	2MB EDO DRAM
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1280x1024
Data Bus	32-bit PCI

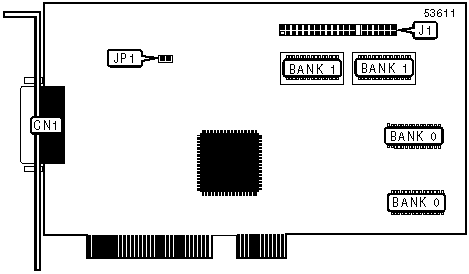

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Proprietary connector (AMC)	J1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	I/O Decode method is Block I/O	JP1	Open
	I/O Decode method is Sparse I/O	JP1	Closed

VIDEO MEMORY CONFIGURATION (VRAM)
Size	Bank 0	Bank 1
1MB	(2) 512KB	None
2MB	(2) 512KB	(2) 512KB
