PCI-V805 video card Settings and Configuration

ASUS AMERICA INC.

PCI-V805

Category
Video
Video Types Supported
XVGA
Video Processor
S3 Inc.
Highest Resolution Supported
1280 x 1024
Data Bus Type
32-bit PCI-bus
Memory Type
DRAM
Maximum Onboard Memory
2MB

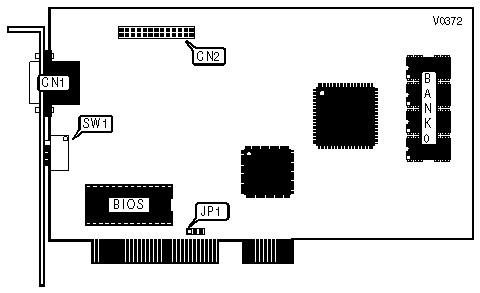

CONNECTIONS
Purpose
Location
Purpose
Location
15 pin analog video port
CN1
VESA Feature connector
CN2

DISPLAY CONFIGURATION
Mode/Sync
Horizontal Frequency
Vertical Frequency
SW1/2
SW1/3
1280 x 1024 x 8
48.1KHz
44.5Hz
On
On
1280 x 1024 x 8
48.1KHz
44.5Hz
On
Off
1280 x 1024 x 8
64.0KHz
60.0Hz
Off
On
1280 x 1024 x 8
64.0KHz
60.0Hz
Off
Off
1280 x 1024 x 4
48.1KHz
44.5Hz
On
On
1280 x 1024 x 4
48.1KHz
44.5Hz
On
Off
1280 x 1024 x 4
64.0KHz
60.0Hz
Off
On
1280 x 1024 x 4
64.0KHz
60.0Hz
Off
Off
1152 x 864 x 8
53.5KHz
56.0Hz
On
On
1152 x 864 x 8
53.5KHz
56.0Hz
On
Off
1152 x 864 x 8
53.5KHz
56.0Hz
Off
On
1152 x 864 x 8
53.5KHz
56.0Hz
Off
Off

DISPLAY CONFIGURATION (CONTINUED)
Mode/Sync
Horizontal Frequency
Vertical Frequency
SW1/2
SW1/3
1024 x 768 x 16
35.5KHz
43.5Hz
On
On
1024 x 768 x 16
35.5KHz
43.5Hz
On
Off
1024 x 768 x 16
35.5KHz
43.5Hz
Off
On
1024 x 768 x 16
35.5KHz
43.5Hz
Off
Off
1024 x 768 x 8
35.5KHz
43.5Hz
On
On
1024 x 768 x 8
35.5KHz
43.5Hz
On
Off
1024 x 768 x 8
48.5KHz
60.0Hz
Off
On
1024 x 768 x 8
56.5KHz
70.0Hz
Off
Off
1024 x 768 x 4
35.5KHz
43.5Hz
On
On
1024 x 768 x 4
35.5KHz
43.5Hz
On
Off
1024 x 768 x 4
48.5KHz
60.0Hz
Off
On
1024 x 768 x 4
56.5KHz
70.0Hz
Off
Off
800 x 600 x 16
37.9KHz
60.0Hz
On
On
800 x 600 x 16
37.9KHz
60.0Hz
On
Off
800 x 600 x 16
37.9KHz
60.0Hz
Off
On
800 x 600 x 16
37.9KHz
60.0Hz
Off
Off
800 x 600 x 8
35.5KHz
56.0Hz
On
On
800 x 600 x 8
35.5KHz
56.0Hz
On
Off
800 x 600 x 8
37.9KHz
60.0Hz
Off
On
800 x 600 x 8
48.1KHz
72.0Hz
Off
Off
800 x 600 x 4
35.5KHz
56.0Hz
On
On
800 x 600 x 4
35.5KHz
56.0Hz
On
Off
800 x 600 x 4
37.9KHz
60.0Hz
Off
On
800 x 600 x 4
48.1KHz
72.0Hz
Off
Off
640 x 480 x 24
38.0KHz
73.0Hz
On
On
640 x 480 x 24
38.0KHz
73.0Hz
On
Off
640 x 480 x 24
38.0KHz
73.0Hz
Off
On
640 x 480 x 24
38.0KHz
73.0Hz
Off
Off
640 x 480 x 16
31.5KHz
60.0Hz
On
On
640 x 480 x 16
31.5KHz
60.0Hz
On
Off
640 x 480 x 16
38.0KHz
73.0Hz
Off
On
640 x 480 x 16
38.0KHz
73.0Hz
Off
Off
640 x 480 x 15
31.5KHz
60.0Hz
On
On
640 x 480 x 15
31.5KHz
60.0Hz
On
Off
640 x 480 x 15
38.0KHz
73.0Hz
Off
On
640 x 480 x 15
38.0KHz
73.0Hz
Off
Off
640 x 480 x 8
31.5KHz
60.0Hz
On
On
640 x 480 x 8
31.5KHz
60.0Hz
On
Off
640 x 480 x 8
31.5KHz
60.0Hz
Off
On
640 x 480 x 8
38.0KHz
73.0Hz
Off
Off

VIDEO INTERUPT SELECT
IRQ
JP1
»
Disabled
Pins 2 & 3 closed

Enabled
Pins 1 & 2 closed

FACTORY CONFIGURED SETTINGS
Switch
Setting
SW1/1
N/A
SW1/4
N/A
Note:These switches are reserved for future use.
