C-5 DASH (230400-002) video card Settings and Configuration
AST RESEARCH, INC.
C-5 DASH (230400-002)
Category | Video |
Video Types Supported | XVGA |
Video Processor | Unidentified |
Highest Resolution Supported | 1024 x 768 |
Data Bus Type | 16-bit ISA |
Memory Type | Unidentified |
Maximum Onboard Memory | Unidentified |

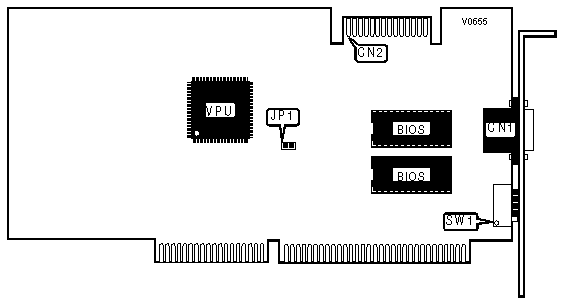

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VGA feature connector | CN2 |
800 X 600 MODE SETTINGS | |||
Monitor Timings | SW1/1 | SW1/2 | |
| » | Vertical 56Hz NL, Horizontal 35.12 | Off | Off |
Vertical 72Hz NL, Horizontal 37.83 | On | Off | |
Vertical 60Hz NL, Horizontal 47.67 | Off | On | |
Vertical 56Hz NL, Horizontal 35.12 | On | On | |
1024 X 768 MODE SETTINGS | |||
Monitor Timings | SW1/3 | SW1/4 | |
| » | Vertical 87Hz Interlaced, Horizontal 35.60 | Off | Off |
Vertical 70Hz NL, Horizontal 56.56 | On | Off | |
Vertical 60Hz NL, Horizontal 48.37 | Off | On | |
Vertical 72Hz NL, Horizontal 59.46 | On | On | |
VGA CONFIGURABLE SETTING | ||
Monitor Timings | SW1/5 | |
| » | Vertical 60/70Hz, Horizontal 31.5Khz | Off |
Vertical 75/88Hz, Horizontal 40Khz | On | |
WAIT STATE CONFIGURATION | ||
Purpose | JP1 | |
| » | Zero Wait State enabled | Closed |
Zero Wait State disabled | Open | |
