DSC-010C video card Settings and Configuration
ASIA DATA, INC.
DSC-010C
Card Type | Video card |
Video Chip Set | Trident |
Maximum Video Memory | 1MB DRAM |
Video Types Supported | VGA |
Highest Resolution Supported | 1024 x 768 |
Data Bus | 16-bit ISA |
CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port | CN1 | Feature connector | CN2 |

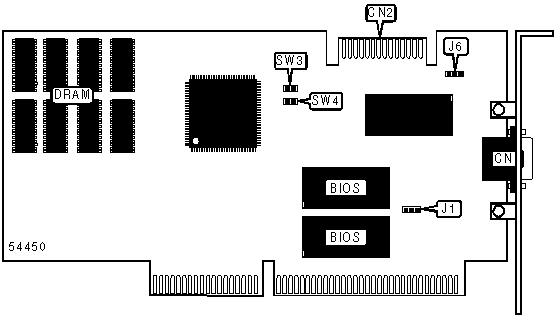

USER CONFIGURABLE SETTINGS | ||
Function | Label | Position |
IRQ 9 interrupt enabled | J1 | Pins 1 & 2 closed |
IRQ 9 interrupt disabled | J1 | Pins 2 & 3 closed |
IBM standard monitor pinout enabled | J6 | Pins 1 & 2 closed |
IBM standard monitor pinout disabled | J6 | Pins 2 & 3 closed |
BIOS autodetect enabled | SW4 | Open |
BIOS autodetect disabled | SW4 | Closed |
SCAN RATE SELECTION | |
Rate | SW3 |
1024 x 768 non-interlaced, 48.7 kHz | Open |
1024 x 768 interlaced | Closed |
MISCELLANEOUS TECHNICAL NOTES |
SW3 is operational with 512KB and 1MB DRAM configurations only. |
