ARTIST XJ1000 video card Settings and Configuration
ARTIST GRAPHICS
ARTIST XJ1000
Category | Video |
Video Types Supported | XVGA |
Video Processor | Artist GPX |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 16-bIt ISA |
Memory Type | VRAM/DRAM |
Maximum Onboard Memory | 2048KB VRAM, 8MB DRAM |

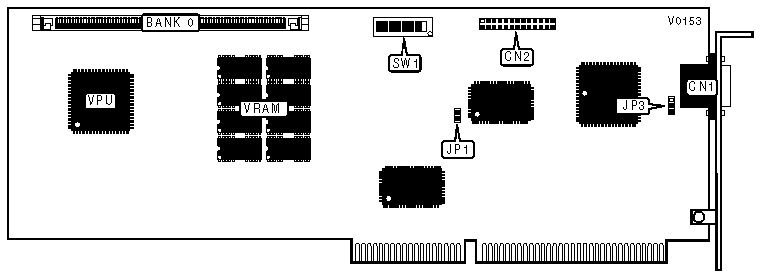

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VGA feature connector | CN2 |
VIDEO CONFIGURATION | ||
Setting | JP1 | |
| » | Enabled | Open |
| Disabled | Closed | |
VIDEO SYNC SELECTION | ||
Sync | JP3 | |
| » | Separate Signals | Pins 1 & 2 closed |
| Composite Signals | Pins 2 & 3 closed | |
BASE I/O ADDRESS SELECTION | |||||||||
Address | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 | SW1/7 | SW1/8 | |
| » | 3E0h | On | Off | Off | Off | Off | Off | Off | Off |
3F0h | Off | Off | Off | Off | Off | Off | Off | Off | |
3C0h | On | On | Off | Off | Off | Off | Off | Off | |
2C0h | On | On | Off | Off | On | Off | Off | Off | |
2D0h | Off | On | Off | Off | On | Off | Off | Off | |
2E0h | On | Off | Off | Off | On | Off | Off | Off | |
DRAM/VRAM CONFIGURATION | |
Size | Bank 0 |
1MB | 256K x 36 |
2MB | 512KB x 36 |
4MB | 1M x 36 |
8MB | 2M x 36 |
