JERONIMO PRO (16MB) video card Settings and Configuration
APPIAN TECHNOLOGY
JERONIMO PRO (16MB)
Card Type | Graphics Accelerator |
Video Chip Set | 3DLabs |
Video Types Supported | VGA, XVGA |
Highest Resolution Supported | 1600 x 1200 |
Maximum Video Memory | 16MB SGRAM |
Data Bus | 64-bit PCI |

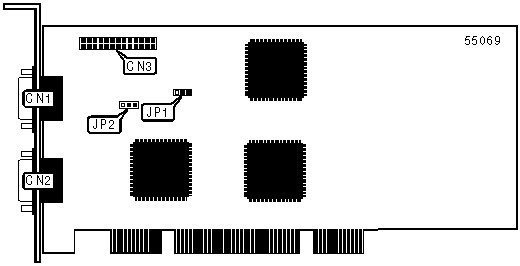

CONNECTIONS | |||
Function | Label | Function | Label |
15-pin analog video port 1 | CN1 | VESA feature connector | CN3 |
15-pin analog video port 2 | CN2 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Primary VGA enabled | JP1 | Pins 1 & 2 closed |
Primary VGA disabled | JP1 | Pins 2 & 3 closed | |
Secondary VGA enabled | JP2 | Pins 1 & 2 closed | |
Secondary VGA disabled | JP2 | Pins 2 & 3 closed | |
