FAST VIEW VLB video card Settings and Configuration
AMERICAN MEGATRENDS, INC.
FAST VIEW VLB
Category | Video |
Video Types Supported | XVGA |
Video Processor | W5186 |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 32-bit VESA Local Bus |
Memory Type | VRAM |
Maximum Onboard Memory | 2048KB |

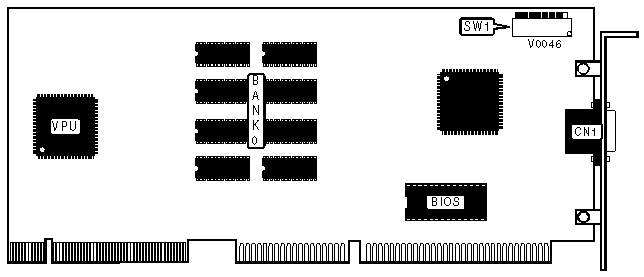

CONNECTIONS | |
Purpose | Location |
15-pin analog video port | CN1 |
DATA BUS WIDTH SELECTION | ||||
Setting | SW1/1 | SW1/4 | SW1/5 | |
| » | 16-bits wide | Off | On | On |
8-bits wide | On | Off | Off | |
INTERRUPT SELECTION | ||
IRQ 2/9 | SW1/2 | |
| » | Disabled | Off |
Enabled | On | |
ZERO WAIT STATE SELECTION | ||
Setting | SW1/3 | |
| » | Enabled | On |
Disabled | Off | |
MEMORY BASE ADDRESS SELECTION | |||
Address | SW1/6 | SW1/7 | |
| » | C000h | On | On |
D000h | On | Off | |
E000h | Off | On | |
F000h | Off | Off | |
FACTORY CONFIGURED - DO NOT ALTER | |
Switch | Position |
SW1/8 | On |
