ALARIS, INC.
MATINEE PRO ACCELERATOR CARD
Card Type | Video card |
Video Chip Set | Cirrus Logic CL-GD 5446 |
Highest Resolution Supported | 1280 x 1024 |
Maximum Video Memory | 2MB DRAM (EDO) |
Data Bus | 32-bit PCI |
Video Types Supported | XVGA |

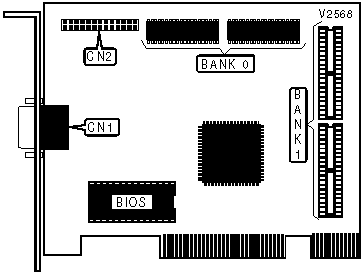

CONNECTIONS | |||
Function | Label | Function | Label |
9-pin analog video port | CN1 | Feature connector | CN2 |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
1MB | (2) 256KB x 16 | None |
2MB | (2) 256KB x 16 | (2) 256KB x 16 |
