PROVGA/TV PLUS video card Settings and Configuration

Category	Video/Sound
Video Types Supported	VGA
Video Processor	Aitech International
Highest Resolution Supported	640 x 480
Data Bus Type	16-bit ISA
Memory Type	VRAM
Maximum Onboard Memory	512KB (location unidentified)

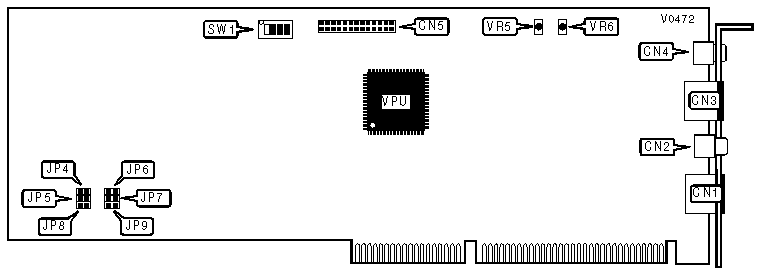

CONNECTIONS
Purpose	Location	Purpose	Location
S-VHS output connector	CN1	VESA feature connector	CN5
RCA jack - video output	CN2	Sync adjustment potentiometer	VR5
S-VHS input connector	CN3	Color adjustment potentiometer	VR6
RCA port - video input	CN4

I/O BASE ADDRESS SELECTION
Address		SW1/1	SW1/2	SW1/3	SW14
»	360h	Off	On	Off	Off
	200h	On	On	On	On
	220h	On	On	On	Off
	240h	On	On	Off	On
	260h	On	On	Off	Off
	280h	On	Off	On	On
	2A0h	On	Off	On	Off
	2C0h	On	Off	Off	On
	2E0h	On	Off	Off	Off
	300h	Off	On	On	On
	320h	Off	On	On	Off
	340h	Off	On	Off	On
	380h	Off	Off	On	On
	3A0h	Off	Off	On	Off
	3C0h	Off	Off	Off	On
	3E0h	Off	Off	Off	Off

INTERRUPT SELECTION
IRQ		JP4	JP5	JP6	JP7	JP8	JP9
»	IRQ12	Closed	Open	Open	Open	Open	Open
	IRQ15	Open	Closed	Open	Open	Open	Open
	IRQ9	Open	Open	Closed	Open	Open	Open
	IRQ7	Open	Open	Open	Closed	Open	Open
	IRQ14	Open	Open	Open	Open	Closed	Open
	IRQ5	Open	Open	Open	Open	Open	Closed
