TSVGA EISA LOCAL BUS video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	ET4000
Highest Resolution Supported	1280 x 1024
Data Bus Type	16-bit EISA
Memory Type	DRAM or VRAM
Maximum Onboard Memory	1024KB

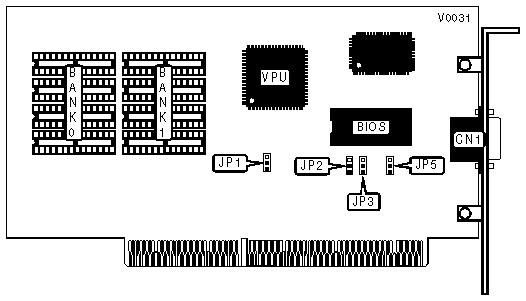

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

INTERRUPT SELECTION
IRQ 2/9		JP1
»	Disabled	Pins 1 & 2 closed
	Enabled	Pins 2 & 3 closed

WAIT STATE SELECTION
Memory wait state		I/O wait state	JP2	JP3
	1	3	Pins 1 & 2 closed	Pins 1 & 2 closed
»	2	4	Pins 2 & 3 closed	Pins 1 & 2 closed
	3	3	Pins 1 & 2 closed	Pins 2 & 3 closed
	4	4	Pins 2 & 3 closed	Pins 2 & 3 closed

MAIN BOARD PROCESSOR SELECTION
Type	JP5
80386DX	Pins 1 & 2 closed
80486SX	Pins 2 & 3 closed
80486DX	Pins 2 & 3 closed

DRAM/VRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(4) 256K x 4	None
1024KB	(4) 256K x 4	(4) 256K x 4
Note: TSVGA card may be configured from the factory with either DRAM or VRAM.
