AVIEW2 (VERSION 1.0) video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	86C911
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	VRAM
Maximum Onboard Memory	1024KB

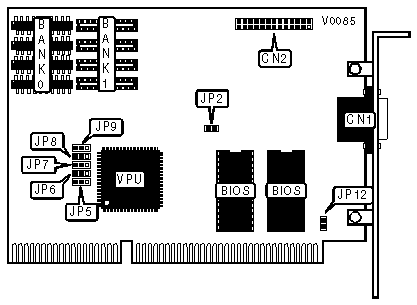

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA Feature connector	CN2

VIDEO INTERRUPT SELECTION
IRQ 2/9		JP12
»	Disabled	Open
	Enabled	Closed

640 X 480 REFRESH RATE SELECTION
Rate	JP5	JP6	JP7
60Hz	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
70Hz	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed

800 X 600 REFRESH RATE SELECTION
Refresh	JP5	JP6	JP7
60Hz	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
70Hz	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed

1024 X 768 REFRESH RATE CONFIGURATION
Rate	Mode	JP5	JP6	JP7
43Hz	Interlaced	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
60Hz	Non-Interlaced	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
70Hz	Interlaced	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed

VIDEO MEMORY SPEED SELECTION
Speed		JP9
»	100 nanosecond	Pins 1 & 2 closed
	80 nanosecond	Pins 2 & 3 closed

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
JP2	Open

VRAM CONFIGURATION
Size	Bank 0	Bank 1	JP8
256KB	(4) 256K x 4 ZIP	None	Pins 2 & 3 closed
512KB	(4) 256K x 4 ZIP	(4) 256K x 4 ZIP	Pins 1 & 2 closed
