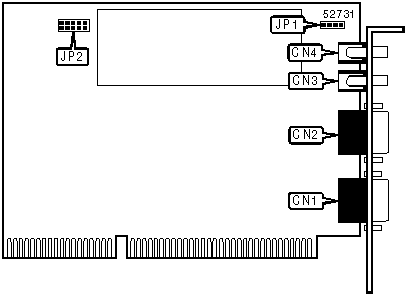

TV CARD video card Settings and Configuration






ACMEPOINT TECHNOLOGY CO., LTD.

TV CARD

Card Type

TV card

Video Chip Set

Philips, Yuan

Highest Resolution Supported

1024 x 768

Maximum Video Memory

None

Data Bus

16-bit ISA

Video Types Supported

XVGA

Video Format supported

NTSC, PAL

CONNECTIONS

Function

Label

Function

Label

VGA Card port

CN1

Speaker

CN3

15-pin analog video port

CN2

Antenna

CN4

USER CONFIGURABLE SETTINGS

Function

Label

Position

Factory configured - do not alter

JP1

Unidentified

Factory configured - do not alter

JP2

Unidentified








TOP
