ACCELECLIPSE II (PCI) video card Settings and Configuration

Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	32MB DRAM
Video Types Supported	VGA
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit PCI

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Memory module socket	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
VGA enabled	H1	Open
VGA disabled	H1	Closed

VIDEO MEMORY CONFIGURATION
Note:	ACCELECLPSE II is equipped with 15MB of onboard memory which may be upgraded to 20MB or 32MB with either a 4MB or 16MB memory module

MISCELLANEOUS TECHNICAL NOTES

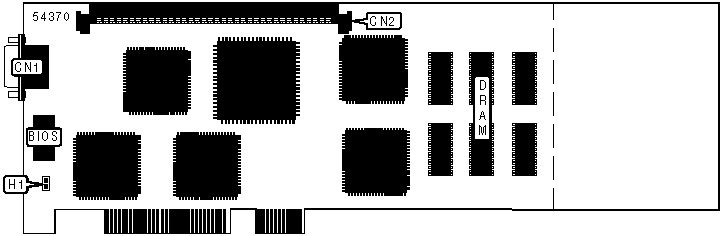

Card available in either a three-quarter length or a full length version. Three-quarter length board ends at the dotted line

MISCELLANEOUS TECHNICAL NOTES

Chips are located on both sides of the board.
