CREDITCARD NETWAVE ADAPTER Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
XIRCOM, INC.
CREDITCARD NETWAVE ADAPTER
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
PCMCIA Type II |
|
Topology |
Unidentified |
|
Wiring Type |
Wireless |
|
Boot ROM |
Not available |
|

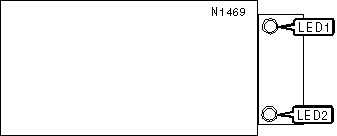

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network connection is good to a Netwave access point |
|
LED1 |
Green |
Blinking |
Network connection is good to an "ad hoc" Netwave network |
|
LED1 |
Green |
Off |
Network connection is broken |
|
LED2 |
Amber |
Blinking |
Data is being transmitted/received |
|
LED2 |
Amber |
Off |
Data is not being transmitted/recieved |
|
|
|
|
 |
|
