CE3-10BC Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Network Cards / X / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
CE3-10BC Network Card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
XIRCOM, INC.
CE3-10BC
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial |
|
Data Bus |
PMCIA Type II |
|

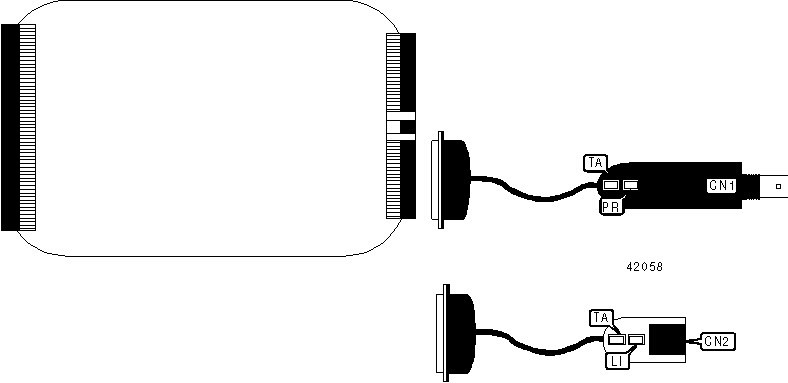

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RG-58A/U 50ohm coaxial |
CN1 |
RJ-45 unshielded twisted pair |
CN2 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
TA |
Yellow |
On |
Data is being transmitted/received |
|
TA |
Yellow |
Off |
Data is not being transmitted/received |
|
PR |
Green |
On |
Power is on |
|
PR |
Green |
Off |
Power is off |
|
LI |
Green |
On |
10Base-T UTP link is good |
|
LI |
Green |
Off |
10Base-T UTP link is broken |
|
LI |
Orange |
On |
100Base-TX UTP link is good |
|
LI |
Orange |
Off |
100Base-TX UTP link is broken |
|
MISCELLANEOUS TECHNICAL NOTES |
|
The 15-pin connector must be attached to the set of pins to the left side (with the company logo facing up) of the end of the card. |
|
|
|
|
 |
|
